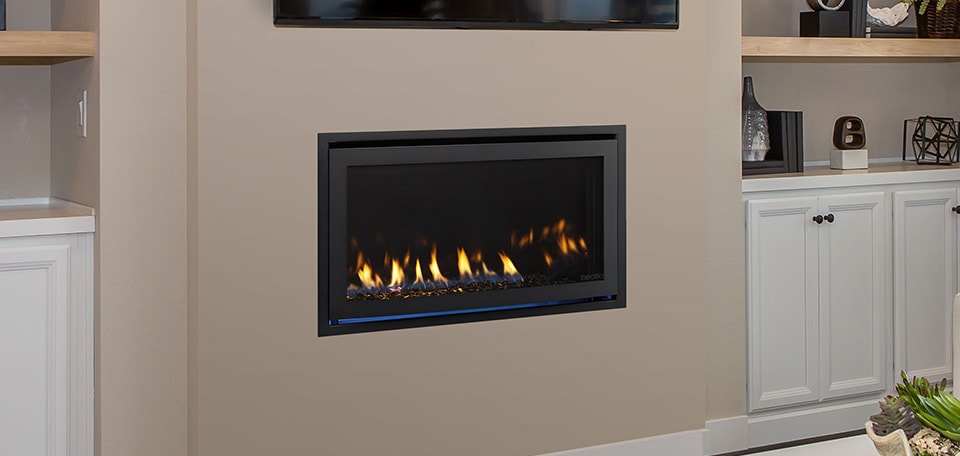

Heatilator Rave Series Gas Fireplace
The Rave adds a modern, linear style and proven value to any home or office. Contemporary design elements are highlighted by a long, mesmerizing ribbon flame rising through attractive modern media. Explore unique placements and create a custom look with a choice of finishing options; include the optional Passive Heat kit to enable a TV just 12" above the Rave fireplace without a mantel.
With unsurpassed dependability and exceptional value, the Rave gas series is another way Heatilator has been keeping America warm since 1927.
- Modern style in a popular linear design
- Total control is yours with optional IntelliFire Touch touchscreen remote - it's simple, smart and safe
- Available in 32”, 36" or 42” models to fit a variety of spaces, including corners
- Moderate heat output – up to 26,000 BTUs
- Customize the interior with fade-resistant reflective black glass panels, glass media, ceramic fiber stones and LED lighting
- Add a Passive Heat kit and mount your TV 12” above your fireplace with no mantel required
- Enjoy your fireplace any season by using heat distribution kits to direct heat where you want it, inside or outside your home
- Efficient fireplaces meeting qualifying rebates if available in your area
Contact Us
Contact us about pricing, installation and any available incentives or promotions on the Heatilator Rave Series Gas Fireplace.
**All fields are required**
Downloads
Installation Manuals
Install Manual RaveHEAT-OUT-GAS Installation Instructions
HEAT-ZONE-GAS Installation Instructions
IFT-ACM Install Manual
Passive Heat Kit Installation Instructions
Passive Heat Trim Installation Instructions
SMART-WALL Installation Instructions
IFT-RC150 Install Manual
IFT-RC400IFT-ACM Install Manual
Model Specifications
Rave 32 w/ IFT 32" Gas Fireplace - DV
Rave 36 w/ IFT 36" Gas Fireplace - DV
Rave 42 w/ IFT 42" Gas Fireplace - DV
Width: | 48" |
Height: | 33-11/16" |
Depth: | 17-3/4" |
Rear Width: | 37-3/4" |
Framing Depth: | 17-3/4" |
Framing Front Width: | 49" |
Framing Back Width: | 49" |
Fuel Type: | Natural gas |
BTU/hr Input: | 25,250 |
Viewing Area: | 39 x 15-1/4" |
Ignition System: | IntelliFire Touch |
Efficiency
Rave 32 w/ IFT 32" Gas Fireplace - DV
Rave 36 w/ IFT 36" Gas Fireplace - DV
Rave 42 w/ IFT 42" Gas Fireplace - DV
Steady State: | 66.4% |
AFUE: | 64.3% |
Canada EnerGuide: | 63.8% |
Specification Images

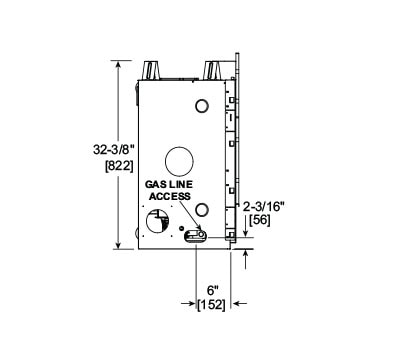

Front View 42Left View 42

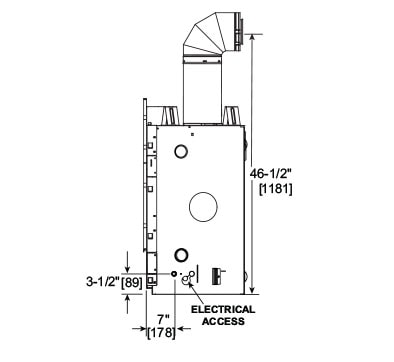

Right View 42

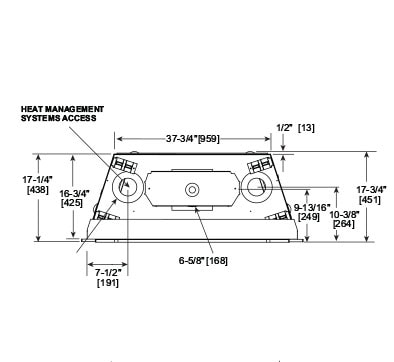

Top View 42

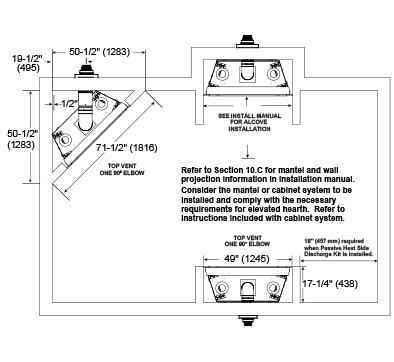

Appliance Location 42

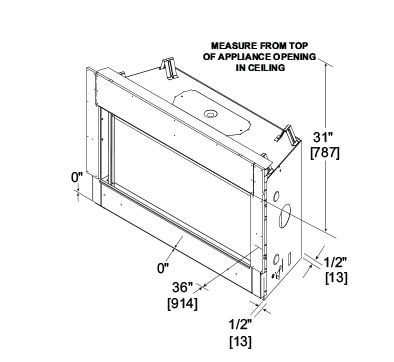

Basic Clearances 42
Framing Dimensions 42

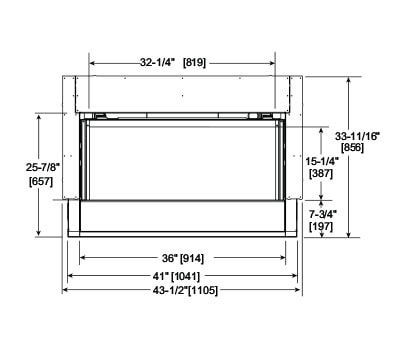

Front View 36

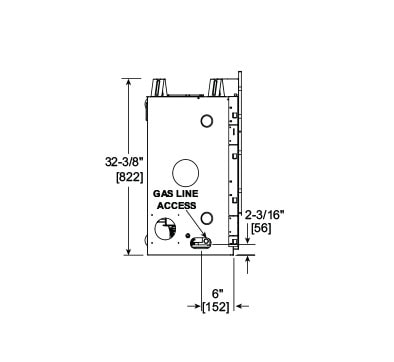

Left View 36

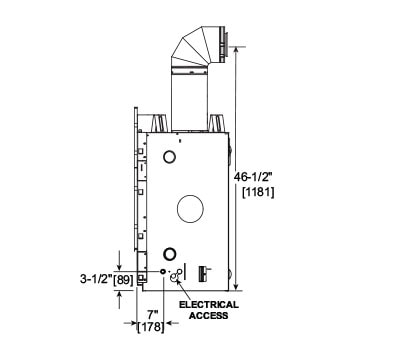

Right View 36

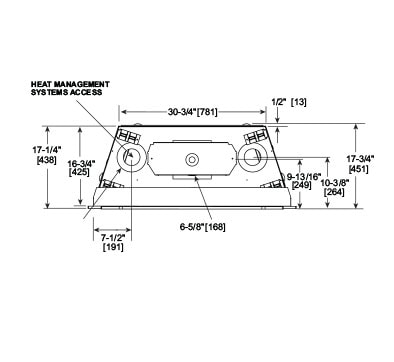

Top View 36

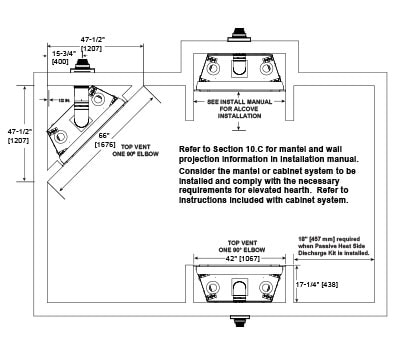

Appliance Location 36

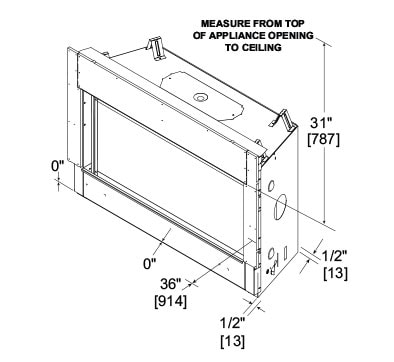

Basic Clearances 36

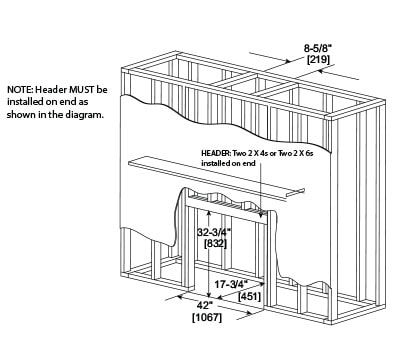

Framing Dimensions 36

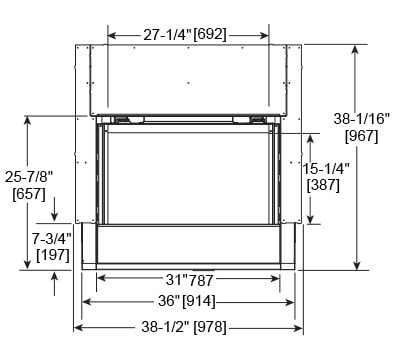

Front View 32

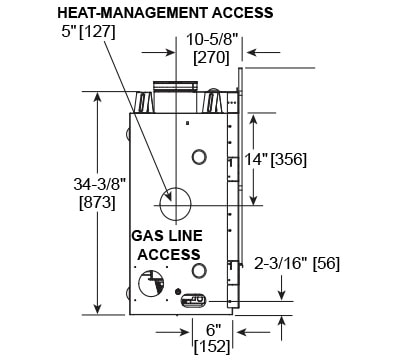

Left View 32

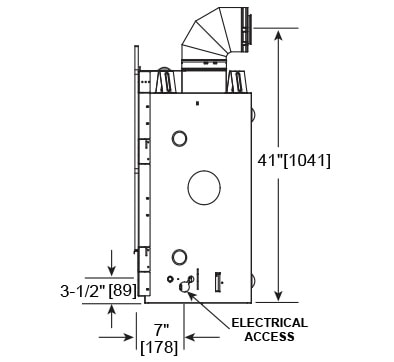

Right View 32

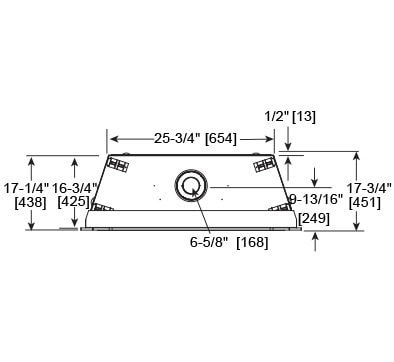

Top View 32

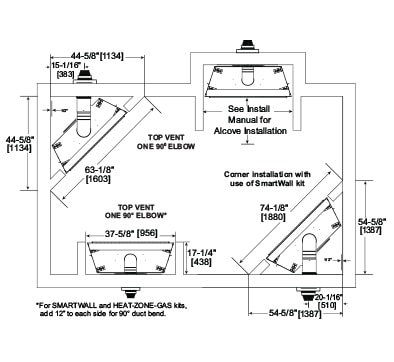

Appliance Location 32

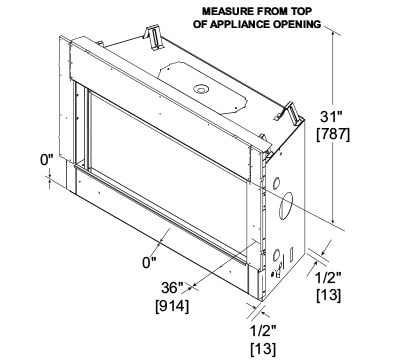

Basic Clearances 32

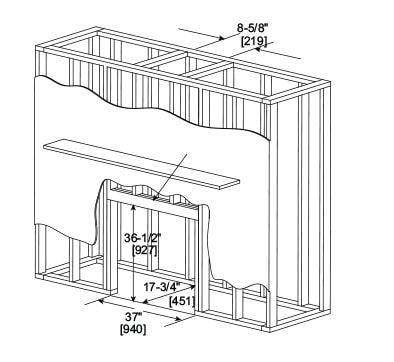

Framing Dimensions 32
